An American style trailer connector is an electrical connector used for trailers in the United States. It provides a way to connect the electrical system of a tow vehicle to the electrical system of a trailer. The American style trailer connector typically has seven pins and is commonly referred to as a "7-way plug."
Some American style trailer connectors may also include an auxiliary wire for additional functions such as a reverse lockout on a trailer with surge brakes.
The American style trailer connector is widely used on recreational vehicles, utility trailers, boat trailers, and other types of trailers in the United States. It is designed to be durable and weather-resistant to withstand the harsh outdoor environment in which trailers operate.
American Style Trailer Connectors, also known as 7-way trailer connectors, are commonly used in North America to provide electrical connections between the towing vehicle and the trailer. Some of the characteristics of American Style Trailer Connectors include:
Seven pins: American Style Trailer Connectors have seven pins, each of which serves a specific purpose.
Sturdy construction: These connectors are designed to withstand harsh weather conditions, rough roads, and heavy use. They are typically made of durable materials such as aluminum or plastic.
Color-coded wires: The wires in American Style Trailer Connectors are color-coded, which makes it easy to identify and connect them correctly.
Compatible with a range of vehicles: American Style Trailer Connectors can be used with a variety of vehicles, including cars, trucks, SUVs, and RVs.
Provides power to trailer lights: The main function of these connectors is to provide power to the trailer lights, including brake lights, turn signals, and taillights.
Additional functions: Some American Style Trailer Connectors also include pins for other functions, such as charging the trailer battery or powering electric trailer brakes.
Easy to install: Installing an American Style Trailer Connector is relatively straightforward, with most models featuring a plug-and-play design that requires minimal wiring.
There are several types of American style trailer connectors. Some of the most common types include:
4-way flat connector: This type of connector has four pins and is commonly used for small trailers, such as boat trailers or utility trailers.
5-way flat connector: Similar to the 4-way flat connector, this type has an additional pin for a reverse light signal.

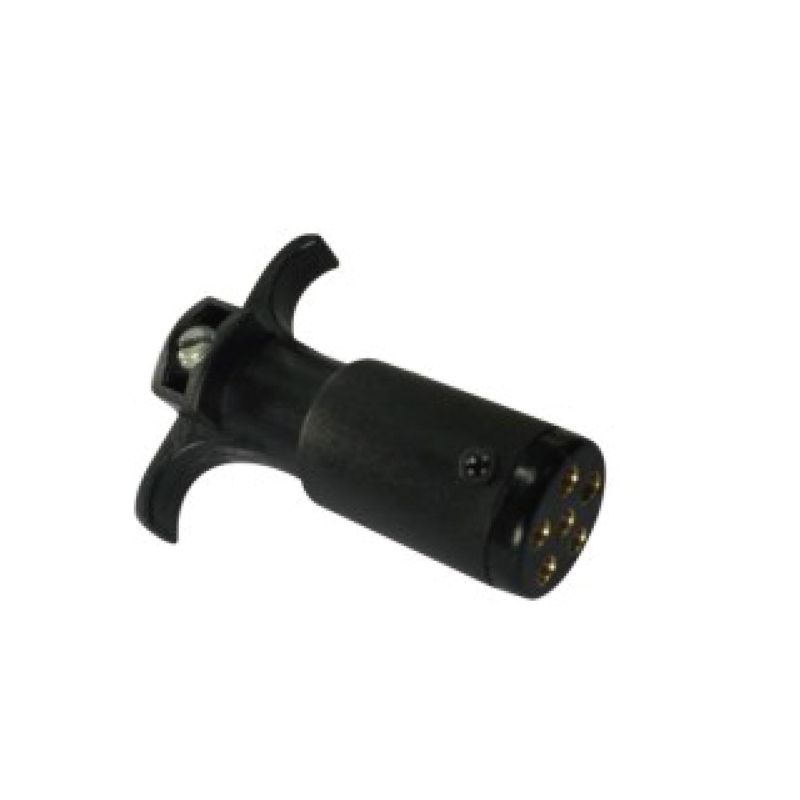

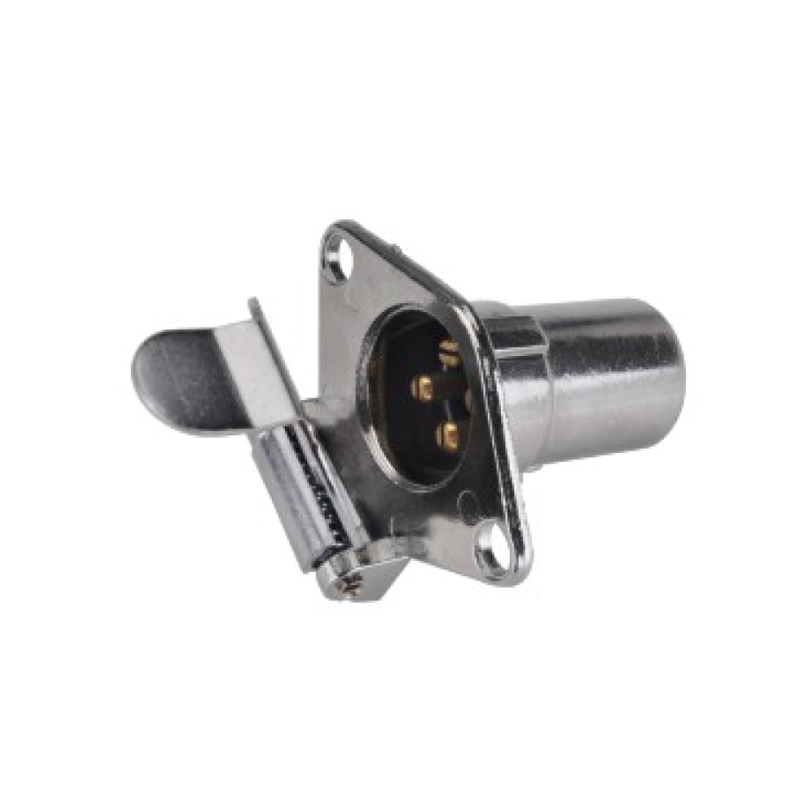

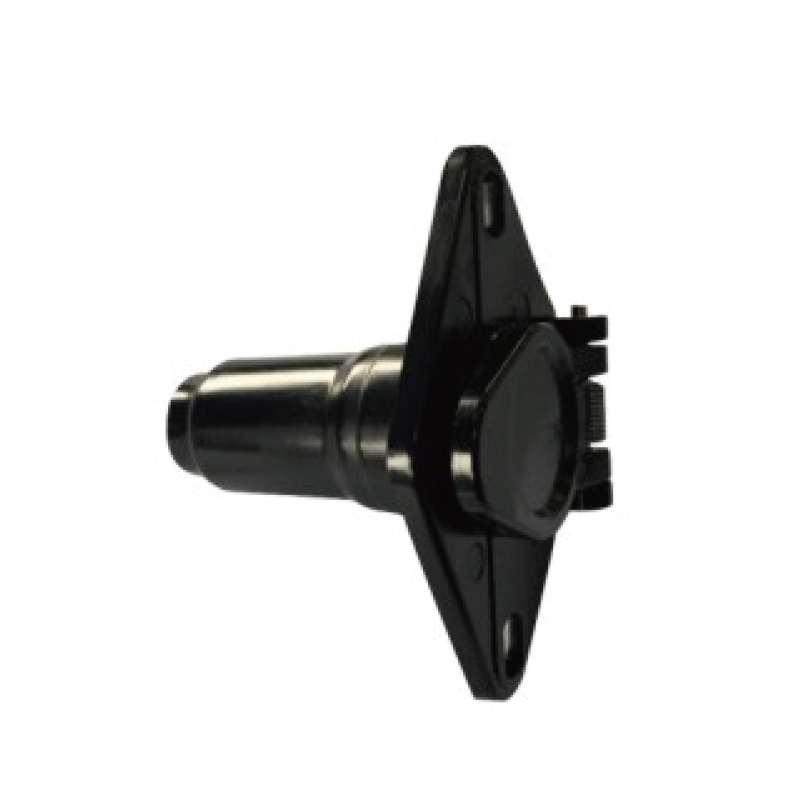

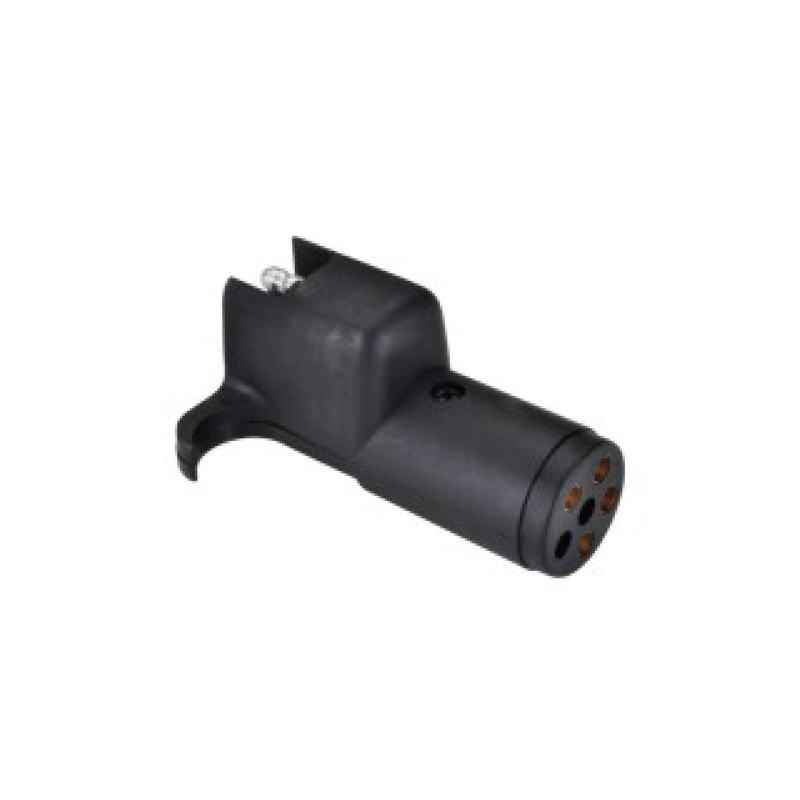

6-way round connector: This type has six pins arranged in a circular pattern and is commonly used for larger trailers, such as horse trailers or caravans.
7-way RV blade connector: This type has seven pins arranged in a blade-shaped pattern and is commonly used for towing RVs or travel trailers.
7-way round connector: Similar to the 7-way RV blade connector, this type has seven pins arranged in a circular pattern and is commonly used for heavy-duty commercial trailers.
